Triumph | Champion Series | Champion Safe Co.

Product Details

Champion has dared mighty things to produce the Triumph Series. Until now maximum security has not been available in a safe of the Triumph’s class. Its heavy 10-gauge steel body with Steel Arch Doorway™ and Double-Steel Door Casement™ provides a pry-resistant fortress. The Triumph’s thick steel door and precision cam-driven boltworks with 1½”-diameter locking bolts provide maximum security. The Triumph’s state-of-the-art door defense systems include: full inner door steel, Cam-Lock™ Pressure Reliever, Diamond-Embedded Armor Plate™ lock protection, and a mechanical relocking system. Double ﬁre seals assist with a 1650°F 90-minute ﬁre rating—unsurpassed in its class. Add to this a velour interior, LED lighting, and a deluxe door organizer, and you complete the masterpiece.

Available Colors

Note: All safes come in additional colors and sizes. Please contact Champion Safe to order a safe not available through our online market. Additional delivery time can be expected.

Two-tone high-gloss polyurethane:

High-gloss polyurethane:

Textured finish:

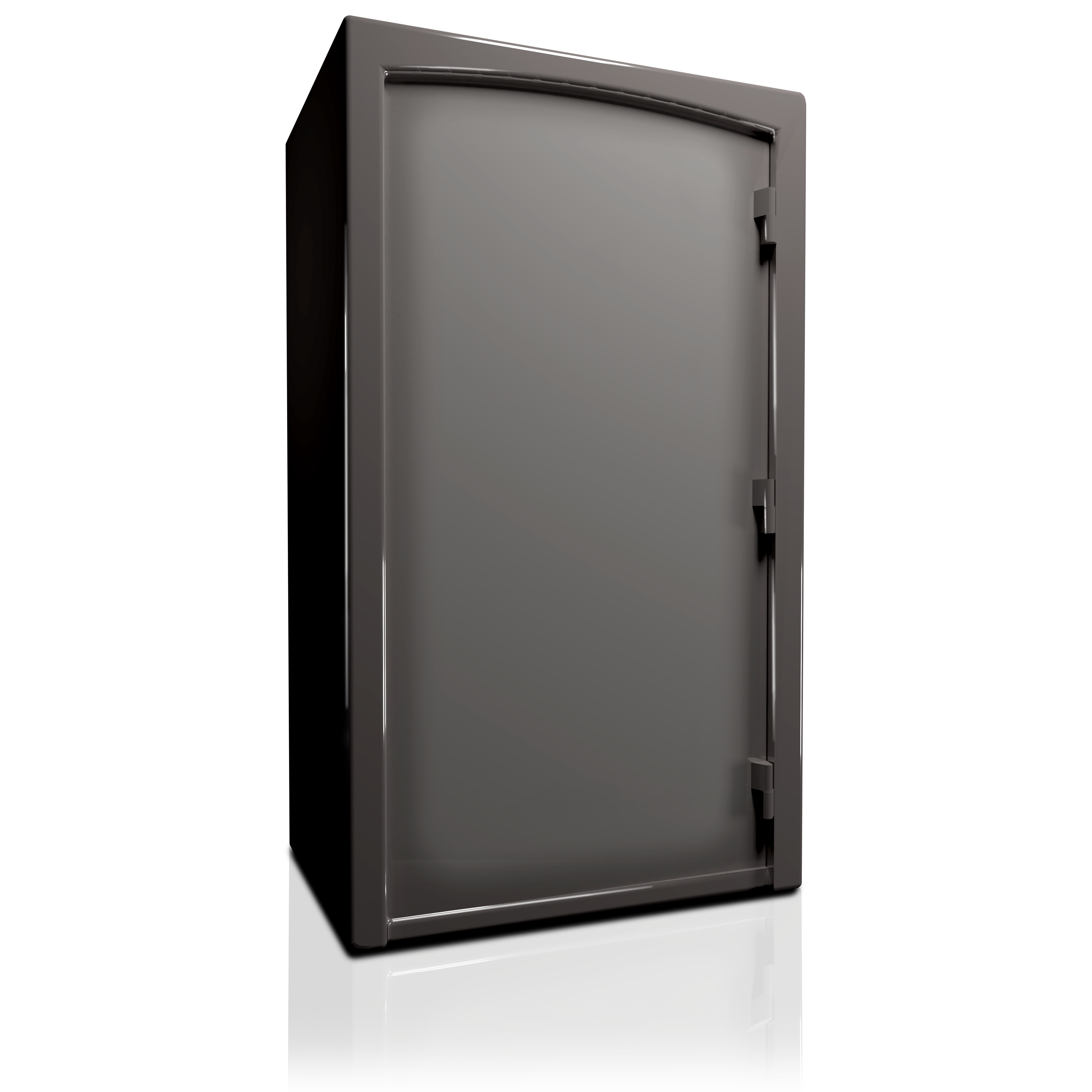

Body

Classic Steel Arch Doorway™ Two-Inch Thick Composite Walls 10-Gauge Steel Walls Three Layers of Fire Insulation Double-Steel Door Casement™ Dual Fire Seals

Maximum-Security Door

5-1/2″ Thick Double Plate Steel Door™ 3/16″ Outer Door Steel, Full 12-Gauge Inner 3/4″ Reinforced Door Edge Three Layers of Fire Insulation External Ball-Bearing Hinges Five-Spoke Handle with Slip Clutch

BoltWorks

Four-Way Active Boltworks Up to 20, 1-1/2”-Diameter Door Bolts Bolt-Detent™ System Roughneck™ Bolt Guides Four-Way Cam with Cam-Lock™

Lock Protection

Champion’s Auto-Relock™ System Diamond-Embedded Armor Plate™

Interior

Plush Interior High Capacity Gun Rack LED Lighting with Motion Sensor 110-Volt Power Receptacle Deluxe Door Organizer

Ratings

1650°F 90-MINUTE FIRE RATING Phoenix™ Class IV Fire Protection Tested in an ASME Certified Facility UL® Security Rating Lifetime Warranty

Available Sizes

Safe Model	Dimensions WxHxD*	Volume (Cubic Feet)	Approx. Weight (lbs)	Outer Shell Thickness	Outer Door Steel Thickness	Inner Door Steel Thickness	Door Edge Thickness	Active Bolts	Gun Count
TR-75**	54" x 72.5" x 35.5"	75 CF	1705	10 ga.	3/16"	12 ga.	3/4"	20 - 1.5"	102
TR-60	48" x 72.5" x 30.5"	56 CF	1390	10 ga.	3/16"	12 ga.	3/4"	20 - 1.5"	64
TR-50	42" x 72.5" x 30.5"	50 CF	1275	10 ga.	3/16"	12 ga.	3/4"	18 - 1.5"	58
TR-40	36" x 66.5" x 28.5"	38 CF	1040	10 ga.	3/16"	12 ga.3/4	3/4"	16 - 1.5"	43
TR-30	30" x 66.5" x 26.5"	30 CF	895	10 ga.	3/16"	12 ga.	3/4"	16 - 1.5"	36
TR-25	30" x 60.5" x 26.5"	25 CF	800	10 ga.	3/16"	12 ga.	3/4"	14 - 1.5"	36

Features & Downloads

Delivery & Returns

Call us at 801.377.7199 if you have any questions.
